Pure air

with B-DETECTION PLUS – the online gas measurement system for your breathing air.

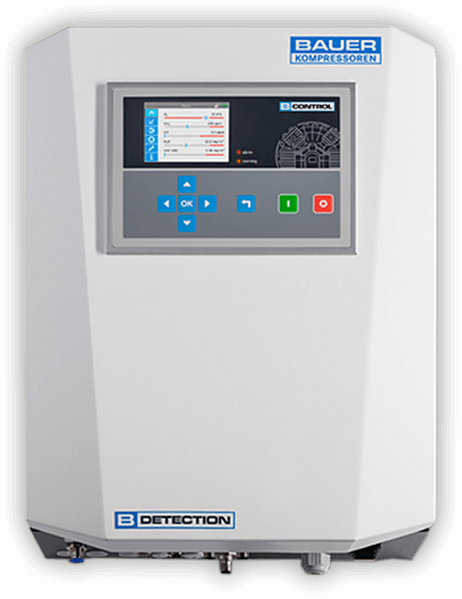

This is B-DETECTION PLUS

Pure breathing air is essential to protect your health and ensure the materials you use function smoothly! B-DETECTION PLUS – BAUER’s new-generation online gas measurement system – does this for you. The values of CO, CO2, O2 and optionally residual oil1 and humidity are reliably and consistently monitored in accordance with relevant standards and threshold values. The latest generation of B-DETECTION PLUS extends the functionality with practical features. Now it is also possible to monitor the quality of the intake air or ambient air of the compressor as well as the breathing air with which breathing air cylinders have already filled.

1 Total oil value measure based only on volatile organic compounds (VOCs). Sensor calibration based on isobutene.

B-DETECTION PLUS i and s

SEAMLESSLY MONITORS BREATHING AIR AND SHUTS DOWN THE COMPRESSOR IF THRESHOLD VALUES ARE EXCEEDED:

CONTINUOUS AIR CHECK

The new B-DETECTION PLUS gas measurement system monitors the quality of the breathing air produced by your system in compliance with the Breathing Air Standard DIN EN 12021:20141. Automatic, continuous and ultra-reliable. NEW! Now, in addition to the ambient air, the already filled breathing air in the cylinder, as well as the intake air can be inspected!

1 Total oil value measure based only on volatile organic compounds (VOCs). Sensor calibration based on isobutene.

LEGAL CERTAINTY

If one or more threshold values are exceeded, the purge valve opens. If the contamination nevertheless persists, the compressor shuts down automatically. This ensures that your breathing air cylinders are filled with pure breathing air only at all times. B-DETECTION PLUS can be connected to the B-CLOUD, thus all measured values being logged whilst you as the operator are ensured of a high level of legal security.

NUMEROUS FEATURE OPTIONS

B-DETECTION PLUS can be tailored to your needs with numerous options such as residual oil and moisture measurement as well as an extended pressure range up to 450 bar.

EXTENDED SAFETY CONCEPT

The latest generation of B-DETECTION PLUS features an extended safety concept. The CO sensor is checked for proper functionality every 24 hours. In addition, the purge valve, flow rate and operating mode are monitored as well.

SMARTPHONE INTERACTION

The new B-APP sends all current gas measurement data to your smartphone, enabling you to monitor the quality of the breathing air going into your cylinders at all times.

CALIBRATION AND BUMP TEST

The simple and quick single-point calibration ensures that the sensors measure the correct values on a long-term basis. It is also possible to perform a semi-automatic calibration of all sensors at the same time. Both have the advantage of saving calibration gas, thus significantly lowering operational costs. Optionally, an automatic bump test fully automatically checks the sensors according to the pre-set inspection interval.

B-DETECTION PLUS m

MONITOR BREATHING AIR ANYWHERE – EVEN WITHOUT INTERNET CONNECTION

ALWAYS TRUSTWORTHY

The new B-DETECTION PLUS m gas measurement system monitors the quality of the breathing air produced by your system in compliance with the Breathing Air Standard, DIN EN 12021:2014.

TOUGH AND RUGGED

The transport case offers IP65-rated protection against dust and water jet ingress and withstands harsh environmental conditions.

FLEXIBLE IN USE

Allows breathing air measurement of ambient air as well as directly from any breathing air cylinder. By means of adapters, it is also possible to measure the air in the filling hose and during the filling process.

UNCOMPROMISINGLY MOBILE

The integrated rechargeable battery* enables measurement to be performed over a minimum period of 5 hours without an external power source.
The system is approved for air travel and can be taken all over the world.

LEGAL CERTAINTY

All measurement data are logged on request and saved to an SD card. The BAUER Excel Macro enables all measurement data to be displayed clearly and printed out as a certificate.

IDEAL FOR ALL NEEDS

With an array of options including total oil value, moisture and ambient air measurement, the system can be tailored to every need.

Continuous improved safety, PureAir Gold certification

Show your customers how you have invested in the safety of your system with B-DETECTION PLUS –to gain certification as a PureAir Gold Station*. Click here to find out all the details:

* Gold certification only possible with B-DETECTION PLUS i and s.

B-DETECTION PLUS Online

The online gas measurement system

B-DETECTION PLUS – NEW GENERATION

The new features at a glance

Find out more

Want to know more? Visit our website for in-depth technical information about B-DETECTION PLUS.
